Replace Data Value with Object

You have a data item that needs additional data or behavior.

Turn the data item into an object.

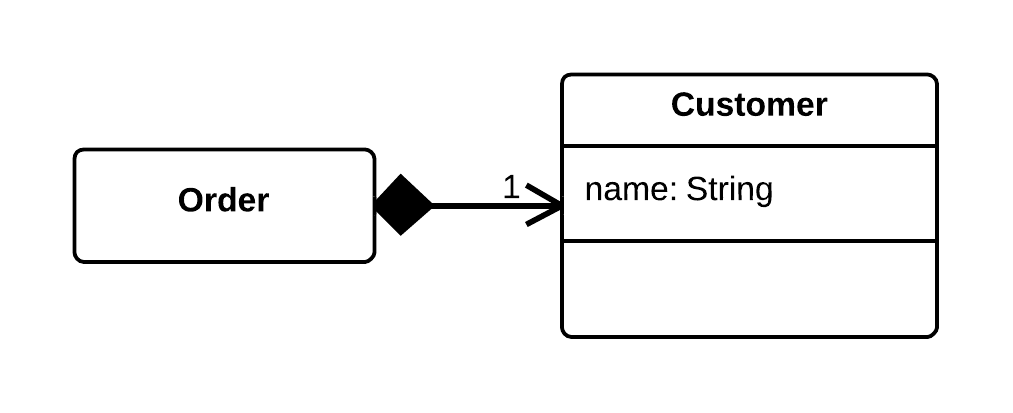

graphics/08fig01.gif

Motivation

Often in early stages of development you make decisions about representing simple facts as simple data items. As development proceeds you realize that those simple items aren't so simple anymore. A telephone number may be represented as a string for a while, but later you realize that the telephone needs special behavior for formatting, extracting the area code, and the like. For one or two items you may put the methods in the owning object, but quickly the code smells of duplication and feature envy. When the smell begins, turn the data value into an object.

Mechanics

  • Create the class for the value. Give it a final field of the same type as the value in the source class. Add a getter and a constructor that takes the field as an argument.
  • Compile.
  • Change the type of the field in the source class to the new class.
  • Change the getter in the source class to call the getter in the new class.
  • If the field is mentioned in the source class constructor, assign the field using the constructor of the new class.
  • Change the getting method to create a new instance of the new class.
  • Compile and test.
  • You may now need to use Change Value to Reference on the new object.

Example

I start with an order class that has stored the customer of the order as a string and wants to turn the customer into an object. This way I have somewhere to store data, such as an address or credit rating, and useful behavior that uses this information.

  class Order...
    public Order (String customer) {
        _customer = customer;
    }
    public String getCustomer() {
        return _customer;
    }
    public void setCustomer(String arg) {
        _customer = arg;
    }
    private String _customer;

Some client code that uses this looks like

    private static int numberOfOrdersFor(Collection orders, String customer) {
        int result = 0;
        Iterator iter = orders.iterator();
        while (iter.hasNext()) {
            Order each = (Order) iter.next();
            if (each.getCustomerName().equals(customer)) result++;
        }
        return result;
    }

First I create the new customer class. I give it a final field for a string attribute, because that is what the order currently uses. I call it name, because that seems to be what the string is used for. I also add a getting method and provide a constructor that uses the attribute:

  class Customer {
    public Customer (String name) {
        _name = name;
    }
    public String getName() {
        return _name;
    }
    private final String _name;
   }

Now I change the type of the customer field and change methods that reference it to use the appropriate references on the customer class. The getter and constructor are obvious. For the setter I create a new customer:

  class Order...
    public Order (String customer) {
        _customer = new Customer(customer);
    }
    public String getCustomer() {
        return _customer.getName();
    }
    private Customer _customer;

    public void setCustomer(String arg) {
        _customer = new Customer(customer);
    }

The setter creates a new customer because the old string attribute was a value object, and thus the customer currently also is a value object. This means that each order has its own customer object. As a rule value objects should be immutable; this avoids some nasty aliasing bugs. Later on I will want customer to be a reference object, but that's another refactoring. At this point I can compile and test.

Now I look at the methods on order that manipulate customer and make some changes to make the new state of affairs clearer. With the getter I use Rename Method to make it clear that it is the name not the object that is returned:

    public String getCustomerName() {
        return _customer.getName();
    }

On the constructor and setter, I don't need to change the signature, but the name of the arguments should change:

    public Order (String customerName) {
        _customer = new Customer(customerName);
    }
    public void setCustomer(String customerName) {
        _customer = new Customer(customerName);
    }

Further refactoring may well cause me to add a new constructor and setter that takes an existing customer.

This finishes this refactoring, but in this case, as in many others, there is another step. If I want to add such things as credit ratings and addresses to our customer, I cannot do so now. This is because the customer is treated as a value object. Each order has its own customer object. To give a customer these attributes I need to apply Change Value to Reference to the customer so that all orders for the same customer share the same customer object. You'll find this example continued there.
