Introduce Local Extension

A server class you are using needs several additional methods, but you can't modify the class.

Create a new class that contains these extra methods. Make this extension class a subclass or a wrapper of the original.

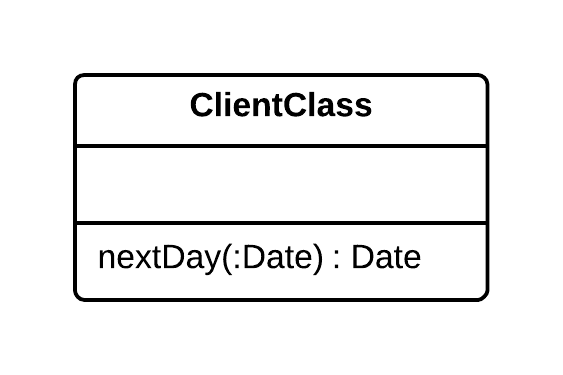

graphics/07fig08.gif

Motivation

Authors of classes sadly are not omniscient, and they fail to provide useful methods for you. If you can modify the source, often the best thing is to add that method. However, you often cannot modify the source. If you need one or two methods, you can use Introduce Foreign Method. Once you get beyond a couple of these methods, however, they get out of hand. So you need to group the methods together in a sensible place for them. The standard object-oriented techniques of subclassing and wrapping are an obvious way to do this. In these circumstances I call the subclass or wrapper a local extension.

A local extension is a separate class, but it is a subtype of the class it is extending. That means it supports all the things the original can do but also adds the extra features. Instead of using the original class, you instantiate the local extension and use it.

By using the local extension you keep to the principle that methods and data should be packaged into well-formed units. If you keep putting code in other classes that should lie in the extension, you end up complicating the other classes, and making it harder to reuse these methods.

In choosing between subclass and wrapper, I usually prefer the subclass because it is less work. The biggest roadblock to a subclass is that it needs to apply at object-creation time. If I can take over the creation process that's no problem. The problem occurs if you apply the local extension later. Subclassing forces me to create a new object of that subclass. If other objects refer to the old one, I have two objects with the original's data. If the original is immutable, there is no problem; I can safely take a copy. But if the original can change, there is a problem, because changes in one object won't change the other and I have to use a wrapper. That way changes made through the local extension affect the original object and vice versa.

Mechanics

  • Create an extension class either as a subclass or a wrapper of the original.
  • Add converting constructors to the extension.
    A constructor takes the original as an argument. The subclass version calls an appropriate superclass constructor; the wrapper version sets the delegate field to the argument.
  • Add new features to the extension.
  • Replace the original with the extension where needed.
  • Move any foreign methods defined for this class onto the extension.

Examples

I had to do this kind of thing quite a bit with Java 1.0.1 and the date class. The calendar class in 1.1 gave me a lot of the behavior I wanted, but before it arrived, it gave me quite a few opportunities to use extension. I use it as an example here.

The first thing to decide is whether to use a subclass or a wrapper. Subclassing is the more obvious way:

  Class mfDate extends Date {
    public nextDay()...
    public dayOfYear()...

A wrapper uses delegation:

  class mfDate {
    private Date _original;

Example: Using a Subclass

First I create the new date as a subclass of the original:

  class MfDateSub extends Date

Next I deal with changing between dates and the extension. The constructors of the original need to be repeated with simple delegation:

    public MfDateSub (String dateString) {
          super (dateString);
    };

Now I add a converting constructor, one that takes an original as an argument:

  public MfDateSub (Date arg) {
      super (arg.getTime());
  }

I can now add new features to the extension and use Move Method to move any foreign methods over to the extension:

  client class...
    private static Date nextDay(Date arg) {
    // foreign method, should be on date
        return new Date (arg.getYear(),arg.getMonth(), arg.getDate() + 1);
    }

becomes

  class MfDate...
    Date nextDay() {
        return new Date (getYear(),getMonth(), getDate() + 1);
  }

Example: Using a Wrapper

I start by declaring the wrapping class:

  class mfDate {
    private Date _original;
  }

With the wrapping approach, I need to set up the constructors differently. The original constructors are implemented with simple delegation:

   public MfDateWrap (String dateString) {
       _original = new Date(dateString);
   };

The converting constructor now just sets the instance variable:

   public MfDateWrap (Date arg) {
       _original = arg;
   }

Then there is the tedious task of delegating all the methods of the original class. I show only a couple.

   public int getYear() {
       return _original.getYear();
   }

   public boolean equals (MfDateWrap arg) {
       return (toDate().equals(arg.toDate()));
   }

Once I've done this I can use Move Method to put date-specific behavior onto the new class:

  client class...
    private static Date nextDay(Date arg) {
    // foreign method, should be on date
        return new Date (arg.getYear(),arg.getMonth(), arg.getDate() + 1);
    }

becomes

  class MfDate...
    Date nextDay() {
        return new Date (getYear(),getMonth(), getDate() + 1);
  }

A particular problem with using wrappers is how to deal with methods that take an original as an argument, such as

  public boolean after (Date arg)

Because I can't alter the original, I can only do after in one direction:

  aWrapper.after(aDate)                         // can be made to work
  aWrapper.after(anotherWrapper)                // can be made to work
  aDate.after(aWrapper)                         // will not work

The purpose of this kind of overriding is to hide the fact I'm using a wrapper from the user of the class. This is good policy because the user of wrapper really shouldn't care about the wrapper and should be able to treat the two equally. However, I can't completely hide this information. The problem lies in certain system methods, such as equals. Ideally you would think that you could override equals on MfDateWrap like this

  public boolean equals (Date arg)     // causes problems

This is dangerous because although I can make it work for my own purposes, other parts of the java system assume that equals is symmetric: that if a.equals(b) then b.equals(a). If I violate this rule I'll run into a bevy of strange bugs. The only way to avoid that would be to modify Date, and if I could do that I wouldn't be using this refactoring. So in situations like this I just have to expose the fact that I'm wrapping. For equality tests this means a new method name.

  public boolean equalsDate (Date arg)

I can avoid testing the type of unknown objects by providing versions of this method for both Date and MfDateWrap.

  public boolean equalsDate (MfDateWrap arg)

The same problem is not an issue with subclassing, if I don't override the operation. If I do override, I become completely confused with the method lookup. I usually don't do override methods with extensions; I usually just add methods.
