Extract Subclass

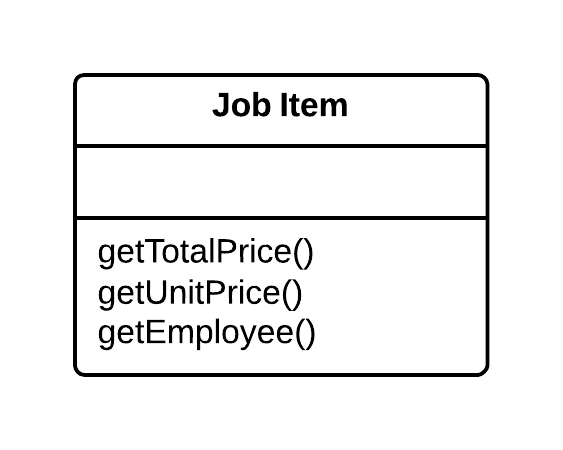

A class has features that are used only in some instances.

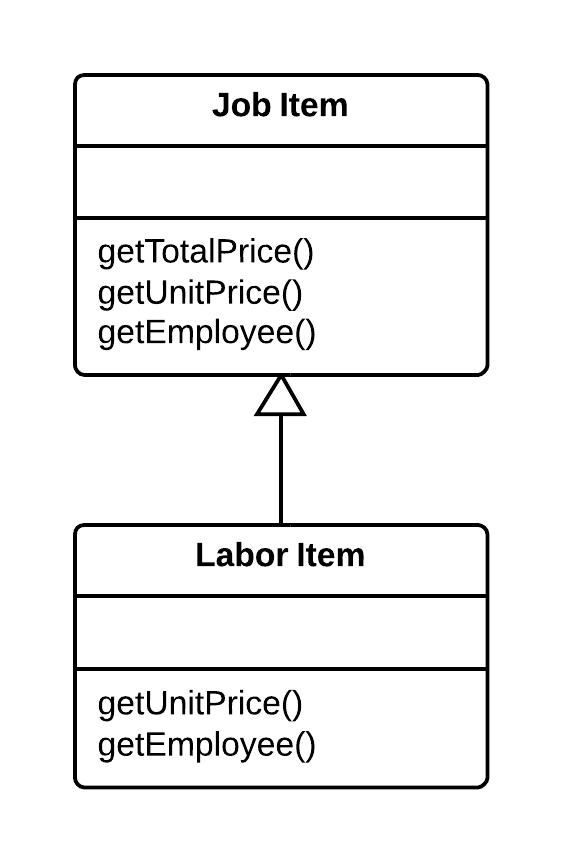

Create a subclass for that subset of features.

graphics/11fig07.gif

Motivation

The main trigger for use of Extract Subclass is the realization that a class has behavior used for some instances of the class and not for others. Sometimes this is signaled by a type code, in which case you can use Replace Type Code with Subclasses or Replace Type Code with State/Strategy. But you don't have to have a type code to suggest the use for a subclass.

The main alternative to Extract Subclass is Extract Class. This is a choice between delegation and inheritance. Extract Subclass is usually simpler to do, but it has limitations. You can't change the class-based behavior of an object once the object is created. You can change the class-based behavior with Extract Class simply by plugging in different components. You can also use only subclasses to represent one set of variations. If you want the class to vary in several different ways, you have to use delegation for all but one of them.

Mechanics

  • Define a new subclass of the source class.
  • Provide constructors for the new subclass.
    In the simple cases, copy the arguments of the superclass and call the superclass constructor with super .

    If you want to hide the use of the subclass from clients, you can use Replace Constructor with Factory Method.

  • Find all calls to constructors of the superclass. If they need the subclass, replace with a call to the new constructor.
    If the subclass constructor needs different arguments, use Rename Method to change it. If some of the constructor parameters of the superclass are no longer needed, use Rename Method on that too.

    If the superclass can no longer be directly instantiated, declare it abstract.

  • One by one use Push Down Method and Push Down Field to move features onto the subclass.
    Unlike Extract Class it usually is easier to work with the methods first and the data last.

    When a public method is pushed, you may need to redefine a caller's variable or parameter type to call the new method. The compiler will catch these cases.

  • Look for any field that designates information now indicated by the hierarchy (usually a boolean or type code). Eliminate it by using Self Encapsulate Field and replacing the getter with polymorphic constant methods. All users of this field should be refactored with Replace Conditional with Polymorphism.
    For any methods outside the class that use an accessor, consider using Move Method to move the method into this class; then use Replace Conditional with Polymorphism.
  • Compile and test after each push down.

Example

I'll start with a job item class that determines prices for items of work at a local garage:

  class JobItem ...
    public JobItem (int unitPrice, int quantity, boolean isLabor, Employee employee) {
        _unitPrice = unitPrice;
        _quantity = quantity;
        _isLabor = isLabor;
        _employee = employee;
    }
    public int getTotalPrice() {
        return getUnitPrice() * _quantity;
    }
    public int getUnitPrice(){
        return (_isLabor) ?
             _employee.getRate():
             _unitPrice;
    }
    public int getQuantity(){
        return _quantity;
    }
    public Employee getEmployee() {
        return _employee;
    }
    private int _unitPrice;
    private int _quantity;
    private Employee _employee;
    private boolean _isLabor;

  class Employee...
    public Employee (int rate) {
        _rate = rate;
    }
    public int getRate() {
        return _rate;
    }
    private int _rate;

I extract a LaborItem subclass from this class because some of the behavior and data are needed only in that case. I begin by creating the new class:

  class LaborItem extends JobItem {}

The first thing I need is a constructor for the labor item because job item does not have a no-arg constructor. For this I copy the signature of the parent constructor:

    public LaborItem (int unitPrice, int quantity, boolean isLabor, Employee employee) {
        super (unitPrice, quantity, isLabor, employee);
    }

This is enough to get the new subclass to compile. However, the constructor is messy; some arguments are needed by the labor item, and some are not. I deal with that later.

The next step is to look for calls to the constructor of the job item, and to look for cases where the constructor of the labor item should be called instead. So statements like

        JobItem j1 = new JobItem (0, 5, true, kent);

become

        JobItem j1 = new LaborItem (0, 5, true, kent);

At this stage I have not changed the type of the variable; I have changed only the type of the constructor. This is because I want to use the new type only where I have to. At this point I have no specific interface for the subclass, so I don't want to declare any variations yet.

Now is a good time to clean up the constructor parameter lists. I use Rename Method on each of them. I work with the superclass first. I create the new constructor and make the old one protected (the subclass still needs it):

  class JobItem...
    protected JobItem (int unitPrice, int quantity, boolean isLabor, Employee employee) {
        _unitPrice = unitPrice;
        _quantity = quantity;
        _isLabor = isLabor;
        _employee = employee;
    }
    public JobItem (int unitPrice, int quantity) {
        this (unitPrice, quantity, false, null)
    }

Calls from outside now use the new constructor:

        JobItem j2 = new JobItem (10, 15);

Once I've compiled and tested, I use Rename Method on the subclass constructor:

  class LaborItem
    public LaborItem (int quantity, Employee employee) {
        super (0, quantity, true, employee);
    }

For the moment, I still use the protected superclass constructor.

Now I can start pushing down the features of the job item. I begin with the methods. I start with using Push Down Method on getEmployee:

  class LaborItem...
    public Employee getEmployee() {
        return _employee;
    }
  class JobItem...
    protected Employee _employee;

Because the employee field will be pushed down later, I declare it as protected for the moment.

Once the employee field is protected, I can clean up the constructors so that employee is set only in the subclass into which it is being pushed down:

  class JobItem...
    protected JobItem (int unitPrice, int quantity, boolean isLabor) {
        _unitPrice = unitPrice;
        _quantity = quantity;
        _isLabor = isLabor;
    }
  class LaborItem ...
    public LaborItem (int quantity, Employee employee) {
        super (0, quantity, true);
         _employee = employee;
    }

The field _isLabor is used to indicate information that is now inherent in the hierarchy. So I can remove the field. The best way to do this is to first use Self Encapsulate Field and then change the accessor to use a polymorphic constant method. A polymorphic constant method is one whereby each implementation returns a (different) fixed value:

  class JobItem...
    protected boolean isLabor() {
        return false;
    }
  class LaborItem...
    protected boolean isLabor() {
        return true;
    }

Then I can get rid of the isLabor field.

Now I can look at users of the isLabor methods. These should be refactored with Replace Conditional with Polymorphism. I take the method

  class JobItem...
    public int getUnitPrice(){
        return (isLabor()) ?
             _employee.getRate():
             _unitPrice;
    }

and replace it with

  class JobItem...
    public int getUnitPrice(){
        return _unitPrice;
    }
  class LaborItem...
    public int getUnitPrice(){
        return  _employee.getRate();
    }

Once a group of methods that use some data have been pushed down, I can use Push Down Field on the data. That I can't use it because a method uses the data is a signal for more work on the methods, either with Push Down Method or Replace Conditional with Polymorphism.

Because the unit price is used only by items that are nonlabor (parts job items), I can use Extract Subclass on job item again to create a parts item class. When I've done that, the job item class will be abstract.
