Duplicate Observed Data

You have domain data available only in a GUI control, and domain methods need access.

Copy the data to a domain object. Set up an observer to synchronize the two pieces of data.

graphics/08fig04.gif

Motivation

A well-layered system separates code that handles the user interface from code that handles the business logic. It does this for several reasons. You may want several interfaces for similar business logic; the user interface becomes too complicated if it does both; it is easier to maintain and evolve domain objects separate from the GUI; or you may have different developers handling the different pieces.

Although the behavior can be separated easily, the data often cannot. Data needs to be embedded in GUI control that has the same meaning as data that lives in the domain model. User interface frameworks, from model-view-controller (MVC) onward, used a multitiered system to provide mechanisms to allow you to provide this data and keep everything in sync.

If you come across code that has been developed with a two-tiered approach in which business logic is embedded into the user interface, you need to separate the behaviors. Much of this is about decomposing and moving methods. For the data, however, you cannot just move the data, you have to duplicate it and provide the synchronization mechanism.

Mechanics

  • Make the presentation class an observer of the domain class [Gang of Four].
    If there is no domain class yet, create one.

    If there is no link from the presentation class to the domain class, put the domain class in a field of the presentation class.

  • Use Self Encapsulate Field on the domain data within the GUI class.
  • Compile and test.
  • Add a call to the setting method in the event handler to update the component with its current value using direct access.
    Put a method in the event handler that updates the value of the component on the basis of its current value. Of course this is completely unnecessary; you are just setting the value to its current value, but by using the setting method, you allow any behavior there to execute.

    When you make this change, don't use the getting method for the component; use direct access to the component. Later the getting method will pull the value from the domain, which does not change until the setting method executes.

    Make sure the event-handling mechanism is triggered by the test code.

  • Compile and test.
  • Define the data and accessor methods in the domain class.
    Make sure the setting method on the domain triggers the notify mechanism in the observer pattern.

    Use the same data type in the domain as is on the presentation (usually a string). Convert the data type in a later refactoring.

  • Redirect the accessors to write to the domain field.
  • Modify the observer's update method to copy the data from the domain field to the GUI control.
  • Compile and test.

Example

I start with the window in Figure 8.1. The behavior is very simple. Whenever you change the value in one of the text fields, the other ones update. If you change the start or end fields, the length is calculated; if you change the length field, the end is calculated.

Figure 8.1. A simple GUI window
graphics/08fig05.gif

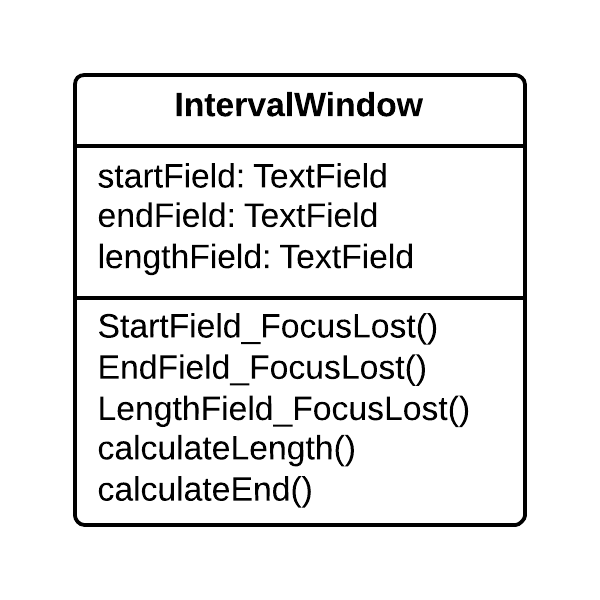

All the methods are on a single IntervalWindow class. The fields are set to respond to the loss of focus from the field.

  public class IntervalWindow extends Frame...
    java.awt.TextField _startField;
    java.awt.TextField _endField;
    java.awt.TextField _lengthField;

    class SymFocus extends java.awt.event.FocusAdapter
    {
        public void focusLost(java.awt.event.FocusEvent event)
        {
            Object object = event.getSource();
            if (object == _startField)
                StartField_FocusLost(event);
            else if (object == _endField)
                EndField_FocusLost(event);
            else if (object == _lengthField)
                LengthField_FocusLost(event);
        }
    }

The listener reacts by calling StartField_FocusLost when focus is lost on the start field and EndField_FocusLost and LengthField_FocusLost for the other fields. These event-handling methods look like this:

    void StartField_FocusLost(java.awt.event.FocusEvent event) {
        if (isNotInteger(_startField.getText()))
            _startField.setText("0");
        calculateLength();
    }

    void EndField_FocusLost(java.awt.event.FocusEvent event) {
        if (isNotInteger(_endField.getText()))
            _endField.setText("0");
        calculateLength();
    }

    void LengthField_FocusLost(java.awt.event.FocusEvent event) {
        if (isNotInteger(_lengthField.getText()))
            _lengthField.setText("0");
        calculateEnd();
    }

If you are wondering why I did the window this way, I just did it the easiest way my IDE (Cafe) encouraged me to.

All fields insert a zero if any noninteger characters appear and call the relevant calculation routine:

  void calculateLength(){
      try {
        int start = Integer.parseInt(_startField.getText());
        int end = Integer.parseInt(_endField.getText());
        int length = end - start;
        _lengthField.setText(String.valueOf(length));
      } catch (NumberFormatException e) {
        throw new RuntimeException ("Unexpected Number Format Error");
      }
}
void calculateEnd() {
    try {
      int start = Integer.parseInt(_startField.getText());
      int length = Integer.parseInt(_lengthField.getText());
      int end = start + length;
      _endField.setText(String.valueOf(end));
    } catch (NumberFormatException e) {
      throw new RuntimeException ("Unexpected Number Format Error");
    }
}

My overall task, should I choose to accept it, is to separate the non-visual logic from the GUI. Essentially this means moving calculateLength and calculateEnd to a separate domain class. To do this I need to refer to the start, end, and length data without referring to the window class. The only way I can do this is to duplicate this data in the domain class and synchronize the data with the GUI. This task is described by Duplicate Observed Data.

I don't currently have a domain class, so I create an (empty) one:

  class Interval extends Observable {}

The interval window needs a link to this new domain class.

    private Interval _subject;

I then need to properly initialize this field and make interval window an observer of the interval. I can do this by putting the following code in interval window's constructor:

    _subject = new Interval();
    _subject.addObserver(this);
    update(_subject, null);

I like to put this code at the end of construction process. The call to update ensures that as I duplicate the data in the domain class, the GUI is initialized from the domain class. To do this I need to declare that interval window implements Observer:

  public class IntervalWindow extends Frame implements Observer

To implement observer I need to create an update method. For the moment this can be blank:

    public void update(Observable observed, Object arg) {
    }

I can compile and test at this point. I haven't made any real changes yet, but I can make mistakes in the simplest places.

Now I can turn my attention to moving fields. As usual I make the changes one field at a time. To demonstrate my command of the English language, I'll start with the end field. The first task is to apply Self Encapsulate Field. Text fields are updated with getText and setText methods. I create accessors that call these

    String getEnd() {
        return _endField.getText();
    }

    void setEnd (String arg) {
        _endField.setText(arg);
    }

I find every reference to _endField and replace them with the appropriate accessors:

    void calculateLength(){
      try {
        int start = Integer.parseInt(_startField.getText());
        int end = Integer.parseInt(getEnd());
        int length = end - start;
        _lengthField.setText(String.valueOf(length));
      } catch (NumberFormatException e) {
        throw new RuntimeException ("Unexpected Number Format Error");
      }
    }

    void calculateEnd() {
      try {
        int start = Integer.parseInt(_startField.getText());
        int length = Integer.parseInt(_lengthField.getText());
        int end = start + length;
        setEnd(String.valueOf(end));
      } catch (NumberFormatException e) {
        throw new RuntimeException ("Unexpected Number Format Error");
      }
  }

    void EndField_FocusLost(java.awt.event.FocusEvent event) {
        if (isNotInteger(getEnd()))
            setEnd("0");
        calculateLength();
     }

That's the normal process for Self Encapsulate Field. However, when you are working with a GUI, there is a complication. The user can change the field value directly without calling setEnd. So I need to put a call to setEnd into the event handler for the GUI. This call changes the value of the end field to the current value of the end field. Of course this does nothing at the moment, but it does ensure the user input goes through the setting method:

    void EndField_FocusLost(java.awt.event.FocusEvent event) {
        setEnd(_endField.getText());
        if (isNotInteger(getEnd()))
            setEnd("0");
        calculateLength();
    }

In this call I don't use getEnd; instead I access the field directly. I do this because later in the refactoring getEnd gets a value from the domain object, not from the field. At that point using it would mean that every time the user were to change the value of the field, this code would change it back again, so here I must use direct access. At this point I can compile and test the encapsulated behavior.

Now I add the end field to the domain class:

  class Interval...
    private String _end = "0";

I initialize it to the same value it is initialized to in the GUI. I now add getting and setting methods:

  class Interval...

    String getEnd() {
        return _end;
    }
    void setEnd (String arg) {
        _end = arg;
        setChanged();
        notifyObservers();
    }

Because I'm using the observer pattern, I have to add the notification code into the setting method. I use a string, not a (more logical) number. This is because I want to make the smallest possible change. Once I've successfully duplicated the data, I can change the internal data type to an integer.

I can now do one more compile and test before I perform the duplication. By doing all this preparatory work, I've minimized the risk in this tricky step.

The first change is updating the accessors on IntervalWindow to use Interval.

  class IntervalWindow...
    String getEnd() {
        return _subject.getEnd();
    }
    void setEnd (String arg) {
        _subject.setEnd(arg);
    }

I also need to update update to ensure the GUI reacts to the notification:

  class IntervalWindow...
    public void update(Observable observed, Object arg) {
      _endField.setText(_subject.getEnd());
    }

This is the other place where I have to use direct access. If I were to call the setting method, I would get into an infinite recursion.

I can now compile and test, and the data is properly duplicated.

I can repeat for the other two fields. Once this is done I can apply Move Method to move calculateEnd and calculateLength over to the interval class. At that point I have a domain class that contains all the domain behavior and data and separates it from the GUI code.

If I've done this, I consider getting rid of the GUI class completely. If my class is an older AWT class, I can get better looks by using Swing, and Swing does a better job with coordination. I can build the Swing GUI on top of the domain class. When I'm happy, I can remove the old GUI class.

Using Event Listeners

Duplicate Observed Data also applies if you use event listeners instead of observer/observable. In this case you need to create a listener and event in the domain model (or you can use classes from AWT if you don't mind the dependency). The domain object then needs to register the listeners in the same way that observable does and send an event to them when it changes, as in the update method. The interval window can then use an inner class to implement the listener interface and call the appropriate update methods.
