Extract Interface

Several clients use the same subset of a class's interface, or two classes have part of their interfaces in common.

Extract the subset into an interface.

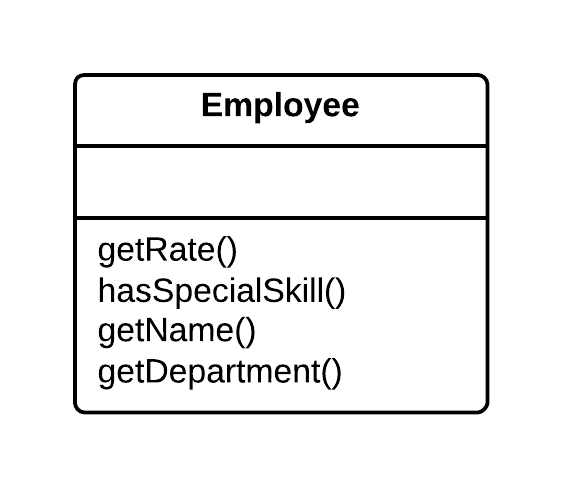

graphics/11fig09.gif

Motivation

Classes use each other in several ways. Use of a class often means ranging over the whole area of responsibilities of a class. Another case is use of only a particular subset of a class's responsibilities by a group of clients. Another is that a class needs to work with any class that can handle certain requests.

For the second two cases it is often useful to make the subset of responsibilities a thing in its own right, so that it can be made clear in the use of the system. That way it is easier to see how the responsibilities divide. If new classes are needed to support the subset, it is easier to see exactly what fits in the subset.

In many object-oriented languages, this capability is supported by multiple inheritance. You create a class for each segment of behavior and combine them in an implementation. Java has single inheritance but allows you to state and implement this kind of requirement using interfaces. Interfaces have had a big influence on the way programmers design Java programs. Even Smalltalk programmers think interfaces are a step forward!

There is some similarity between Extract Superclass and Extract Interface. Extract Interface can only bring out common interfaces, not common code. Using Extract Interface can lead to smelly duplicate code. You can reduce this problem by using Extract Class to put the behavior into a component and delegating to it. If there is substantial common behavior Extract Superclass is simpler, but you do only get to have one superclass.

Interfaces are good to use whenever a class has distinct roles in different situations. Use Extract Interface for each role. Another useful case is that in which you want to describe the outbound interface of a class, that is, the operations the class makes on its server. If you want to allow other kinds of servers in the future, all they need do is implement the interface.

Mechanics

  • Create an empty interface.
  • Declare the common operations in the interface.
  • Declare the relevant class(es) as implementing the interface.
  • Adjust client type declarations to use the interface.

Example

A timesheet class generates charges for employees. In order to do this the timesheet needs to know the employee's rate and whether the employee has a special skill:

    double charge(Employee emp, int days) {
        int base =  emp.getRate() * days;
        if (emp.hasSpecialSkill())
            return base * 1.05;
        else return base;
    }

Employee has many other aspects to it than the charge rate and the special skill information, but those are the only pieces that this application needs. I can highlight the fact that I need only this subset by defining an interface for it:

  interface Billable {
    public int getRate();
    public boolean hasSpecialSkill();
  }

I then declare the employee as implementing the interface:

  class Employee implements Billable ...

With that done I can change the declaration of charge to show only this part of the employee's behavior is used:

    double charge(Billable emp, int days) {
        int base =  emp.getRate() * days;
        if (emp.hasSpecialSkill())
            return base * 1.05;
        else return base;
    }

At the moment the gain is a modest gain in documentability. Such a gain would not be worthwhile for one method, but if several classes were to use the billable interface on person, that would be useful. The big gain appears when I want to bill computers too. To make them billable I know that all I have to do is implement the billable interface and I can put computers on timesheets.
