Inline Class

A class isn't doing very much.

Move all its features into another class and delete it.

graphics/07fig04.gif

Motivation

Inline Class is the reverse of Extract Class. I use Inline Class if a class is no longer pulling its weight and shouldn't be around any more. Often this is the result of refactoring that moves other responsibilities out of the class so there is little left. Then I want to fold this class into another class, picking one that seems to use the runt class the most.

Mechanics

  • Declare the public protocol of the source class onto the absorbing class. Delegate all these methods to the source class.
    If a separate interface makes sense for the source class methods, use Extract Interface before inlining.
  • Change all references from the source class to the absorbing class.
    Declare the source class private to remove out-of-package references. Also change the name of the source class so the compiler catches any dangling references to the source class.
  • Compile and test.
  • Use Move Method and Move Field to move features from the source class to the absorbing class until there is nothing left.
  • Hold a short, simple funeral service.

Example

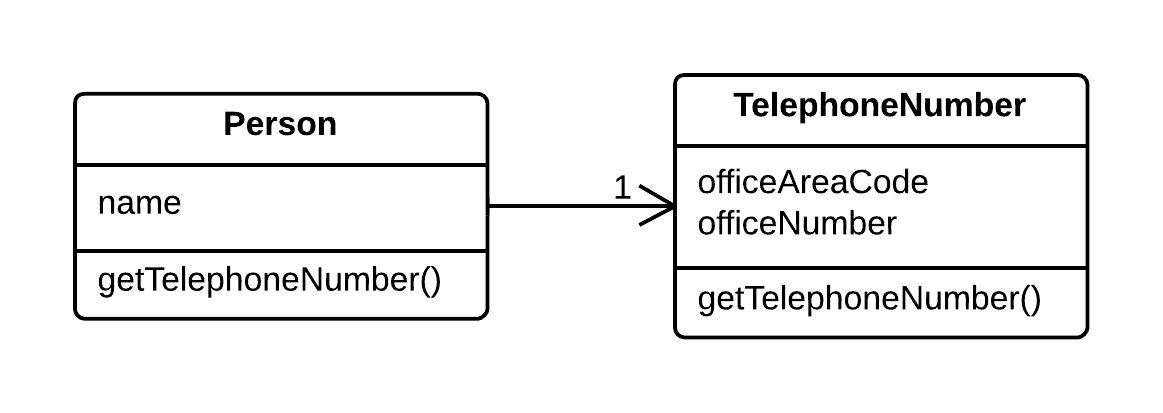

Because I made a class out of telephone number, I now inline it back into person. I start with separate classes:

  class Person...
    public String getName() {
        return _name;
    }
    public String getTelephoneNumber(){
        return _officeTelephone.getTelephoneNumber();
    }
    TelephoneNumber getOfficeTelephone() {
        return _officeTelephone;
    }

    private String _name;
    private TelephoneNumber _officeTelephone = new TelephoneNumber();

  class TelephoneNumber...
    public String getTelephoneNumber() {
        return ("(" + _areaCode + ") " + _number);
    }
    String getAreaCode() {
        return _areaCode;
    }
    void setAreaCode(String arg) {
        _areaCode = arg;
    }
    String getNumber() {
        return _number;
    }
    void setNumber(String arg) {
        _number = arg;
    }
    private String _number;
    private String _areaCode;

I begin by declaring all the visible methods on telephone number on person:

  class Person...
    String getAreaCode() {
        return _officeTelephone.getAreaCode();
    }
    void setAreaCode(String arg) {
        _officeTelephone.setAreaCode(arg);
    }
    String getNumber() {
        return _officeTelephone.getNumber();
    }
    void setNumber(String arg) {
        _officeTelephone.setNumber(arg);
    }

Now I find clients of telephone number and switch them to use the person's interface. So

    Person martin = new Person();
    martin.getOfficeTelephone().setAreaCode ("781");

becomes

    Person martin = new Person();
    martin.setAreaCode ("781");

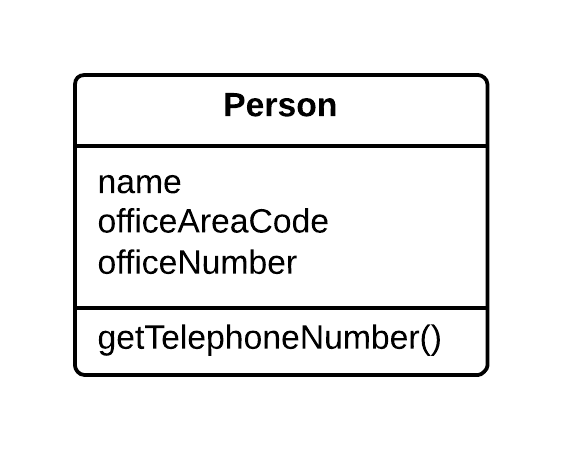

Now I can use Move Method and Move Field until the telephone class is no more.
