Encapsulate Collection

A method returns a collection.

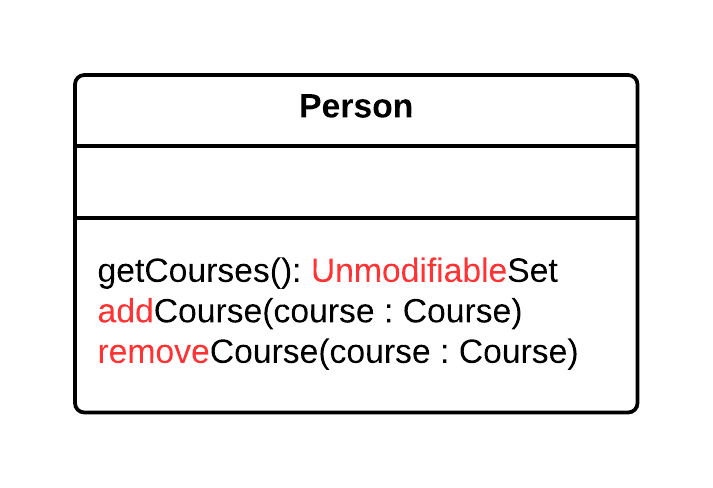

Make it return a read-only view and provide add/remove methods.

graphics/08fig08.gif

Motivation

Often a class contains a collection of instances. This collection might be an array, list, set, or vector. Such cases often have the usual getter and setter for the collection.

However, collections should use a protocol slightly different from that for other kinds of data. The getter should not return the collection object itself, because that allows clients to manipulate the contents of the collection without the owning class's knowing what is going on. It also reveals too much to clients about the object's internal data structures. A getter for a multivalued attribute should return something that prevents manipulation of the collection and hides unnecessary details about its structure. How you do this varies depending on the version of Java you are using.

In addition there should not be a setter for collection: rather there should be operations to add and remove elements. This gives the owning object control over adding and removing elements from the collection.

With this protocol the collection is properly encapsulated, which reduces the coupling of the owning class to its clients.

Mechanics

  • Add an add and remove method for the collection.
  • Initialize the field to an empty collection.
  • Compile.
  • Find callers of the setting method. Either modify the setting method to use the add and remove operations or have the clients call those operations instead.
    Setters are used in two cases: when the collection is empty and when the setter is replacing a nonempty collection.

    You may wish to use Rename Method to rename the setter. Change it from set to initialize or replace.

  • Compile and test.
  • Find all users of the getter that modify the collection. Change them to use the add and remove methods. Compile and test after each change.
  • When all uses of the getter that modify have been changed, modify the getter to return a read-only view of the collection.
    In Java 2, this is the appropriate unmodifiable collection view.

    In Java 1.1, you should return a copy of the collection.

    Compile and test.

  • Find the users of the getter. Look for code that should be on the host object. Use Extract Method and Move Method to move the code to the host object.

For Java 2, you are done with that. For Java 1.1, however, clients may prefer to use an enumeration. To provide the enumeration:

  • Change the name of the current getter and add a new getter to return an enumeration. Find users of the old getter and change them to use one of the new methods.
    If this is too big a jump, use Rename Method on the old getter, create a new method that returns an enumeration, and change callers to use the new method.
  • Compile and test.

Examples

Java 2 added a whole new group of classes to handle collections. It not only added new classes but also altered the style of using collections. As a result the way you encapsulate a collection is different depending on whether you use the Java 2 collections or the Java 1.1 collections. I discuss the Java 2 approach first, because I expect the more functional Java 2 collections to displace the Java 1.1 collections during the lifetime of this book.

Example: Java 2

A person is taking courses. Our course is pretty simple:

  class Course...
    public Course (String name, boolean isAdvanced) {...};
    public boolean isAdvanced() {...};

I'm not going to bother with anything else on the course. The interesting class is the person:

  class Person...
    public Set getCourses() {
        return _courses;
    }
    public void setCourses(Set arg) {
        _courses = arg;
    }
    private Set _courses;

With this interface, clients adds courses with code such as

    Person kent = new Person();
    Set s = new HashSet();
    s.add(new Course ("Smalltalk Programming", false));
    s.add(new Course ("Appreciating Single Malts", true));
    kent.setCourses(s);
    Assert.equals (2, kent.getCourses().size());
    Course refact = new Course ("Refactoring", true);
    kent.getCourses().add(refact);
    kent.getCourses().add(new Course ("Brutal Sarcasm", false));
    Assert.equals (4, kent.getCourses().size());
    kent.getCourses().remove(refact);
    Assert.equals (3, kent.getCourses().size());

A client that wants to know about advanced courses might do it this way:

    Iterator iter = person.getCourses().iterator();
    int count = 0;
    while (iter.hasNext()) {
       Course each = (Course) iter.next();
       if (each.isAdvanced()) count ++;
    }

The first thing I want to do is to create the proper modifiers for the collection and compile, as follows:

  class Person
    public void addCourse (Course arg) {
        _courses.add(arg);
    }
    public void removeCourse (Course arg) {
        _courses.remove(arg);
    }

Life will be easier if I initialize the field as well:

    private Set _courses = new HashSet();

I then look at the users of the setter. If there are many clients and the setter is used heavily, I need to replace the body of the setter to use the add and remove operations. The complexity of this process depends on how the setter is used. There are two cases. In the simplest case the client uses the setter to initialize the values, that is, there are no courses before the setter is applied. In this case I replace the body of the setter to use the add method:

  class Person...
    public void setCourses(Set arg) {
        Assert.isTrue(_courses.isEmpty());
        Iterator iter = arg.iterator();
        while (iter.hasNext()) {
            addCourse((Course) iter.next());
        }
     }

After changing the body this way, it is wise to use Rename Method to make the intention clearer.

    public void initializeCourses(Set arg) {
        Assert.isTrue(_courses.isEmpty());
        Iterator iter = arg.iterator();
        while (iter.hasNext()) {
            addCourse((Course) iter.next());
        }
    }

In the more general case I have to use the remove method to remove every element first and then add the elements. But I find that occurs rarely (as general cases often do).

If I know that I don't have any additional behavior when adding elements as I initialize, I can remove the loop and use addAll.

    public void initializeCourses(Set arg) {
        Assert.isTrue(_courses.isEmpty());
        _courses.addAll(arg);
    }

I can't just assign the set, even though the previous set was empty. If the client simply create a set and use the setter, I can get them to use the add were to modify the set after passing it in, that would violate encapsulation. I have to make a copy.

If the clients simply create a set and use the setter, I can get them to use the add and remove methods directly and remove the setter completely. Code such as

    Person kent = new Person();
    Set s = new HashSet();
    s.add(new Course ("Smalltalk Programming", false));
    s.add(new Course ("Appreciating Single Malts", true));
    kent.initializeCourses(s);

becomes

    Person kent = new Person();
    kent.addCourse(new Course ("Smalltalk Programming", false));
    kent.addCourse(new Course ("Appreciating Single Malts", true));

Now I start looking at users of the getter. My first concern is cases in which someone uses the getter to modify the underlying collection, for example:

    kent.getCourses().add(new Course ("Brutal Sarcasm", false));

I need to replace this with a call to the new modifier:

    kent.addCourse(new Course ("Brutal Sarcasm", false));

Once I've done this for everyone, I can check that nobody is modifying through the getter by changing the getter body to return an unmodifiable view:

    public Set getCourses() {
        return Collections.unmodifiableSet(_courses);
    }

At this point I've encapsulated the collection. No one can change the elements of collection except through methods on the person.

Moving Behavior into the Class

I have the right interface. Now I like to look at the users of the getter to find code that ought to be on person. Code such as

    Iterator iter = person.getCourses().iterator();
    int count = 0;
    while (iter.hasNext()) {
       Course each = (Course) iter.next();
       if (each.isAdvanced()) count ++;
    }

is better moved to person because it uses only person's data. First I use Extract Method on the code:

   int numberOfAdvancedCourses(Person person) {
        Iterator iter = person.getCourses().iterator();
        int count = 0;
        while (iter.hasNext()) {
            Course each = (Course) iter.next();
            if (each.isAdvanced()) count ++;
        }
        return count;
    }

And then I use Move Method to move it to person:

  class Person...
    int numberOfAdvancedCourses() {
        Iterator iter = getCourses().iterator();
        int count = 0;
        while (iter.hasNext()) {
            Course each = (Course) iter.next();
            if (each.isAdvanced()) count ++;
        }
        return count;
    }

A common case is

  kent.getCourses().size()

which can be changed to the more readable

  kent.numberOfCourses()

  class Person...
    public int numberOfCourses() {
        return _courses.size();
    }

A few years ago I was concerned that moving this kind of behavior over to person would lead to a bloated person class. In practice, I've found that usually isn't a problem.

Example: Java 1.1

In many ways the Java 1.1 case is pretty similar to the Java 2. I use the same example but with a vector:

  class Person...
    public Vector getCourses() {
        return _courses;
    }
    public void setCourses(Vector arg) {
        _courses = arg;
    }
    private Vector _courses;

Again I begin by creating modifiers and initializing the field as follows:

  class Person
    public void addCourse(Course arg) {
        _courses.addElement(arg);
    }
    public void removeCourse(Course arg) {
        _courses.removeElement(arg);
    }
    private Vector _courses = new Vector();

I can modify the setCourses to initialize the vector:

    public void initializeCourses(Vector arg) {
        Assert.isTrue(_courses.isEmpty());
        Enumeration e = arg.elements();
        while (e.hasMoreElements()) {
            addCourse((Course) e.nextElement());
        }
    }

I change users of the getter to use the modifiers, so

    kent.getCourses().addElement(new Course ("Brutal Sarcasm", false));

becomes

    kent.addCourse(new Course ("Brutal Sarcasm", false));

My final step changes because vectors do not have an unmodifiable version:

  class Person...
    Vector getCourses() {
        return (Vector) _courses.clone();
    }

At this point I've encapsulated the collection. No one can change the elements of collection except through the person.

Example: Encapsulating Arrays

Arrays are commonly used, especially by programmers who are not familiar with collections. I rarely use arrays, because I prefer the more behaviorally rich collections. I often change arrays into collections as I do the encapsulation.

This time I begin with a string array for skills:

    String[] getSkills() {
        return _skills;
    }
    void setSkills (String[] arg) {
        _skills = arg;
    }
    String[] _skills;

Again I begin by providing a modifier operation. Because the client is likely to change a value at a particular position, I need a set operation for a particular element:

    void setSkill(int index, String newSkill) {
        _skills[index] = newSkill;
    }

If I need to set the whole array, I can do so using the following operation:

    void setSkills (String[] arg) {
        _skills = new String[arg.length];
        for (int i=0; i < arg.length; i++)
            setSkill(i,arg[i]);
    }

There are numerous pitfalls here if things have to be done with the removed elements. The situation is complicated by what happens when the argument array is different in length from the original array. That's another reason to prefer a collection.

At this point I can start looking at users of the getter. I can change

    kent.getSkills()[1] = "Refactoring";

to

    kent.setSkill(1,"Refactoring");

When I've made all the changes, I can modify the getter to return a copy:

    String[] getSkills() {
        String[] result = new String[_skills.length];
        System.arraycopy(_skills, 0, result, 0, _skills.length);
        return result;
    }

This is a good point to replace the array with a list:

  class Person...
    String[] getSkills() {
        return (String[]) _skills.toArray(new String[0]);
    }
    void setSkill(int index, String newSkill) {
        _skills.set(index,newSkill);
    }
    List _skills = new ArrayList();
