Move Field

A field is, or will be, used by another class more than the class on which it is defined.

Create a new field in the target class, and change all its users.

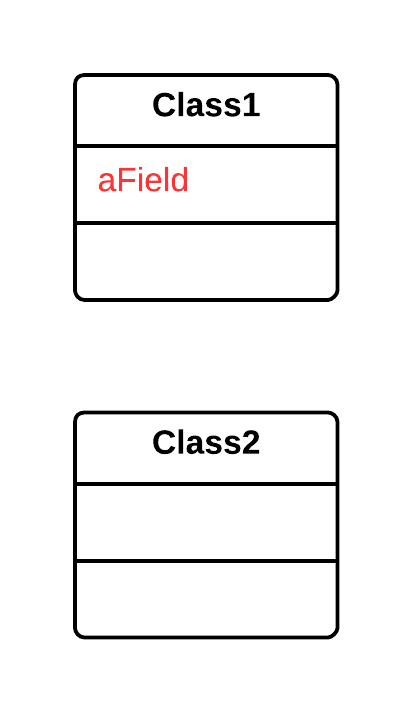

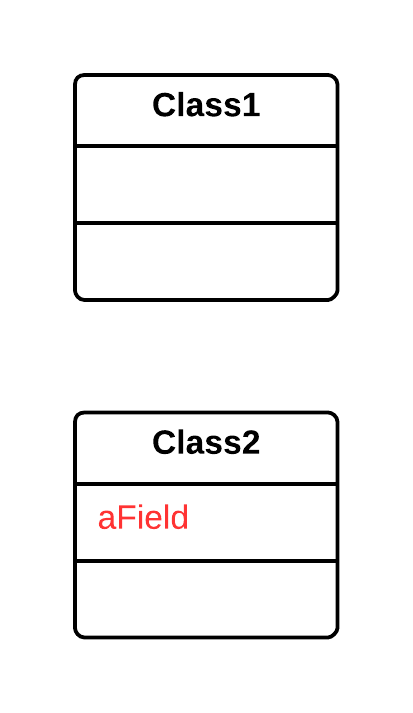

graphics/07fig02.gif

Motivation

Moving state and behavior between classes is the very essence of refactoring. As the system develops, you find the need for new classes and the need to shuffle responsibilities around. A design decision that is reasonable and correct one week can become incorrect in another. That is not a problem; the only problem is not to do something about it.

I consider moving a field if I see more methods on another class using the field than the class itself. This usage may be indirect, through getting and setting methods. I may choose to move the methods; this decision based on interface. But if the methods seem sensible where they are, I move the field.

Another reason for field moving is when doing Extract Class. In that case the fields go first and then the methods.

Mechanics

  • If the field is public, use Encapsulate Field.

    If you are likely to be moving the methods that access it frequently or if a lot of methods access the field, you may find it useful to use Self Encapsulate Field

  • Compile and test.
  • Create a field in the target class with getting and setting methods.
  • Compile the target class.
  • Determine how to reference the target object from the source.
    An existing field or method may give you the target. If not, see whether you can easily create a method that will do so. Failing that, you need to create a new field in the source that can store the target. This may be a permanent change, but you can also do it temporarily until you have refactored enough to remove it.
  • Remove the field on the source class.
  • Replace all references to the source field with references to the appropriate method on the target.
    For accesses to the variable, replace the reference with a call to the target object's getting method; for assignments, replace the reference with a call to the setting method.

    If the field is not private, look in all the subclasses of the source for references.

  • Compile and test.

Example

Here is part of an account class:

 class Account...
   private AccountType _type;
   private double _interestRate;

   double interestForAmount_days (double amount, int days) {
       return _interestRate * amount * days / 365;
   }

I want to move the interest rate field to the account type. There are several methods with that reference, of which interestForAmount_days is one example.I next create the field and accessors in the account type:

 class AccountType...
   private double _interestRate;

   void setInterestRate (double arg) {
       _interestRate = arg;
   }

   double getInterestRate () {
       return _interestRate;
   }

I can compile the new class at this point.

Now I redirect the methods from the account class to use the account type and remove the interest rate field in the account. I must remove the field to be sure that the redirection is actually happening. This way the compiler helps spot any method I failed to redirect.

   private double _interestRate;

   double interestForAmount_days (double amount, int days) {
       return _type.getInterestRate() * amount * days / 365;
   }

Example: Using Self-Encapsulation

If a lot of methods use the interest rate field, I might start by using Self Encapsulate Field:

  class Account...
    private AccountType _type;
    private double _interestRate;

    double interestForAmount_days (double amount, int days) {
        return getInterestRate() * amount * days / 365;
    }

    private void setInterestRate (double arg) {
        _interestRate = arg;
    }

    private double getInterestRate () {
        return _interestRate;
    }

That way I only need to do the redirection for the accessors:

    double interestForAmountAndDays (double amount, int days) {
        return getInterestRate() * amount * days / 365;
    }

    private void setInterestRate (double arg) {
        _type.setInterestRate(arg);
    }

    private double getInterestRate () {
        return _type.getInterestRate();
    }

I can redirect the clients of the accessors to use the new object later if I want. Using self-encapsulation allows me to take a smaller step. This is useful if I'm doing a lot of things with the class. In particular, it simplifies use Move Method to move methods to the target class. If they refer to the accessor, such references don't need to change.
