Extract Superclass

You have two classes with similar features.

Create a superclass and move the common features to the superclass.

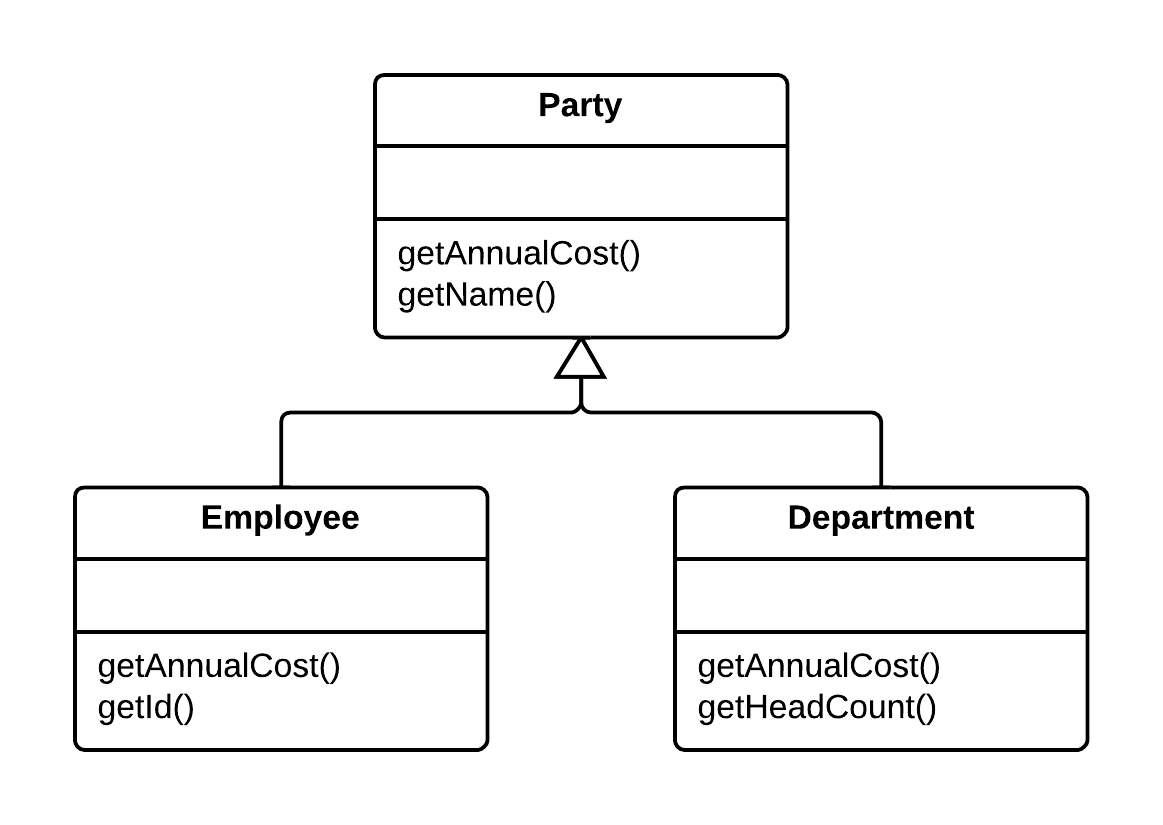

graphics/11fig08.gif

Motivation

Duplicate code is one of the principal bad things in systems. If you say things in multiple places, then when it comes time to change what you say, you have more things to change than you should.

One form of duplicate code is two classes that do similar things in the same way or similar things in different ways. Objects provide a built-in mechanism to simplify this situation with inheritance. However, you often don't notice the commonalities until you have created some classes, in which case you need to create the inheritance structure later.

An alternative is Extract Class. The choice is essentially between inheritance and delegation. Inheritance is the simpler choice if the two classes share interface as well as behavior. If you make the wrong choice, you can always use Replace Inheritance with Delegation later.

Mechanics

  • Create a blank abstract superclass; make the original classes subclasses of this superclass.
  • One by one, use Pull Up Field, Pull Up Method, and Pull Up Constructor Body to move common elements to the superclass.
    It's usually easier to move the fields first.

    If you have subclass methods that have different signatures but the same purpose, use Rename Method to get them to the same name and then use Pull Up Method.

    If you have methods with the same signature but different bodies, declare the common signature as an abstract method on the superclass.

    If you have methods with different bodies that do the same thing, you may try using Substitute Algorithm to copy one body into the other. If this works, you can then use Pull Up Method.

  • Compile and test after each pull.
  • Examine the methods left on the subclasses. See if there are common parts, if there are you can use Extract Method followed by Pull Up Method on the common parts. If the overall flow is similar, you may be able to use Form Template Method.
  • After pulling up all the common elements, check each client of the subclasses. If they use only the common interface you can change the required type to the superclass.

Example

For this case I have an employee and a department:

  class Employee...
    public Employee (String name, String id, int annualCost) {
        _name = name;
        _id = id;
        _annualCost = annualCost;
    }
    public int getAnnualCost() {
        return _annualCost;
    }
    public String getId(){
        return _id;
    }
    public String getName() {
        return _name;
    }
    private String _name;
    private int _annualCost;
    private String _id;

  public class Department...
    public Department (String name) {
        _name = name;
    }
    public int getTotalAnnualCost(){
        Enumeration e = getStaff();
        int result = 0;
        while (e.hasMoreElements()) {
            Employee each = (Employee) e.nextElement();
            result += each.getAnnualCost();
        }
        return result;
    }
    public int getHeadCount() {
         return _staff.size();
    }
    public Enumeration getStaff() {
        return _staff.elements();
    }

    public void addStaff(Employee arg) {
        _staff.addElement(arg);
    }
    public String getName() {
        return _name;
    }
    private String _name;
    private Vector _staff = new Vector();

There are a couple of areas of commonality here. First, both employees and departments have names. Second, they both have annual costs, although the methods for calculating them are slightly different. I extract a superclass for both of these features. The first step is to create the new superclass and define the existing superclasses to be subclasses of this superclass:

  abstract class Party {}
  class Employee extends Party...
  class Department extends Party...

Now I begin to pull up features to the superclass. It is usually easier to use Pull Up Field first:

  class Party...
    protected String _name;

Then I can use Pull Up Method on the getters:

  class Party {

    public String getName() {
        return _name;
    }

I like to make the field private. To do this I need to use Pull Up Constructor Body to assign the name:

  class Party...
    protected Party (String name) {
        _name = name;
    }
    private String _name;

  class Employee...
    public Employee (String name, String id, int annualCost) {
        super (name);
        _id = id;
        _annualCost = annualCost;
    }

  class Department...
    public Department (String name) {
        super (name);
    }

The methods Department.getTotalAnnualCost and Employee.getAnnualCost, do carry out the same intention, so they should have the same name. I first use Rename Method to get them to the same name:

  class Department extends Party {
    public int getAnnualCost(){
        Enumeration e = getStaff();
        int result = 0;
        while (e.hasMoreElements()) {
            Employee each = (Employee) e.nextElement();
            result += each.getAnnualCost();
        }
        return result;
    }

Their bodies are still different, so I cannot use Pull Up Method; however, I can declare an abstract method on the superclass:

    abstract public int getAnnualCost()

Once I've made the obvious changes, I look at the clients of the two classes to see whether I can change any of them to use the new superclass. One client of these classes is the department class itself, which holds a collection of employees. The getAnnualCost method uses only the annual cost method, which is now declared on the party:

  class Department...
    public int getAnnualCost(){
        Enumeration e = getStaff();
        int result = 0;
        while (e.hasMoreElements()) {
            Party each = (Party) e.nextElement();
            result += each.getAnnualCost();
        }
        return result;
    }

This behavior suggests a new possibility. I could treat department and employee as a composite [Gang of Four]. This would allow me to let a department include another department. This would be new functionality, so it is not strictly a refactoring.

If a composite were wanted, I would obtain it by changing the name of the staff field to better represent the picture. This change would involve making a corresponding change in the name addStaff and altering the parameter to be a party. The final change would be to make the headCount method recursive. I could do this by creating a headcount method for employee that just returns 1 and using Substitute Algorithm on the department's headcount to sum the headcounts of the components.
