Extract Class

You have one class doing work that should be done by two.

Create a new class and move the relevant fields and methods from the old class into the new class.

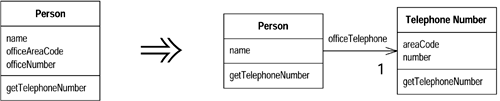

graphics/07fig03.gif

Motivation

You've probably heard that a class should be a crisp abstraction, handle a few clear responsibilities, or some similar guideline. In practice, classes grow. You add some operations here, a bit of data there. You add a responsibility to a class feeling that it's not worth a separate class, but as that responsibility grows and breeds, the class becomes too complicated. Soon your class is as crisp as a microwaved duck.

Such a class is one with many methods and quite a lot of data. A class that is too big to understand easily. You need to consider where it can be split, and you split it. A good sign is that a subset of the data and a subset of the methods seem to go together. Other good signs are subsets of data that usually change together or are particularly dependent on each other. A useful test is to ask yourself what would happen if you removed a piece of data or a method. What other fields and methods would become nonsense?

One sign that often crops up later in development is the way the class is subtyped. You may find that subtyping affects only a few features or that some features need to be subtyped one way and other features a different way.

Mechanics

  • Decide how to split the responsibilities of the class.
  • Create a new class to express the split-off responsibilities.
    If the responsibilities of the old class no longer match its name, rename the old class.
  • Make a link from the old to the new class.
    You may need a two-way link. But don't make the back link until you find you need it.
  • Use Move Field on each field you wish to move.
  • Compile and test after each move.
  • Use Move Method to move methods over from old to new. Start with lower-level methods (called rather than calling) and build to the higher level.
  • Compile and test after each move.
  • Review and reduce the interfaces of each class.
    If you did have a two-way link, examine to see whether it can be made one way.
  • Decide whether to expose the new class. If you do expose the class, decide whether to expose it as a reference object or as an immutable value object.

Example

I start with a simple person class:

    class Person...
      public String getName() {
          return _name;
      }
      public String getTelephoneNumber() {
          return ("(" + _officeAreaCode + ") " + _officeNumber);
      }
      String getOfficeAreaCode() {
          return _officeAreaCode;
      }
      void setOfficeAreaCode(String arg) {
          _officeAreaCode = arg;
      }
      String getOfficeNumber() {
          return _officeNumber;
      }
      void setOfficeNumber(String arg) {
          _officeNumber = arg;
      }

      private String _name;
      private String _officeAreaCode;
      private String _officeNumber;

In this case I can separate the telephone number behavior into its own class. I start by defining a telephone number class:

    class TelephoneNumber {
    }

That was easy! I next make a link from the person to the telephone number:

    class Person
      private TelephoneNumber _officeTelephone = new TelephoneNumber();

Now I use Move Field on one of the fields:

    class TelephoneNumber {
      String getAreaCode() {
          return _areaCode;
      }
      void setAreaCode(String arg) {
          _areaCode = arg;
      }
      private String _areaCode;
    }
    class Person...
      public String getTelephoneNumber() {
          return ("(" + getOfficeAreaCode() + ") " + _officeNumber);
      }
      String getOfficeAreaCode() {
          return _officeTelephone.getAreaCode();
      }
      void setOfficeAreaCode(String arg) {
          _officeTelephone.setAreaCode(arg);
      }

I can then move the other field and use Move Method on the telephone number:

    class Person...
      public String getName() {
          return _name;
      }
      public String getTelephoneNumber(){
          return _officeTelephone.getTelephoneNumber();
      }
      TelephoneNumber getOfficeTelephone() {
          return _officeTelephone;
      }

      private String _name;
      private TelephoneNumber _officeTelephone = new TelephoneNumber();
    class TelephoneNumber...
      public String getTelephoneNumber() {
          return ("(" + _areaCode + ") " + _number);
      }
      String getAreaCode() {
          return _areaCode;
      }
      void setAreaCode(String arg) {
          _areaCode = arg;
      }
      String getNumber() {
          return _number;
      }
      void setNumber(String arg) {
          _number = arg;
      }
      private String _number;
      private String _areaCode;

The decision then is how much to expose the new class to my clients. I can completely hide it by providing delegating methods for its interface, or I can expose it. I may choose to expose it to some clients (such as those in my package) but not to others.

If I choose to expose the class, I need to consider the dangers of aliasing. If I expose the telephone number and a client changes the area code in that object, how do I feel about it? It may not be a direct client that makes this change. It might be the client of a client of a client.

I have the following options:

  • I accept that any object may change any part of the telephone number. This makes the telephone number a reference object, and I should consider Change Value to Reference. In this case the person would be the access point for the telephone number.
  • I don't want anybody to change the value of the telephone number without going through the person. I can either make the telephone number immutable, or I can provide an immutable interface for the telephone number.
  • Another possibility is to clone the telephone number before passing it out. But this can lead to confusion because people think they can change the value. It also may lead to aliasing problems between clients if the telephone number is passed around a lot.

Extract Class is a common technique for improving the liveness of a concurrent program because it allows you to have separate locks on the two resulting classes. If you don't need to lock both objects you don't have to. For more on this see Large Class.

However, there is a danger there. If you need to ensure that both objects are locked together, you get into the area of transactions and other kinds of shared locks. This is complex territory and requires heavier machinery than it is typically worth. Transactions are very useful when you use them, but writing transaction managers is more than most programmers should attempt.
