Form Template Method

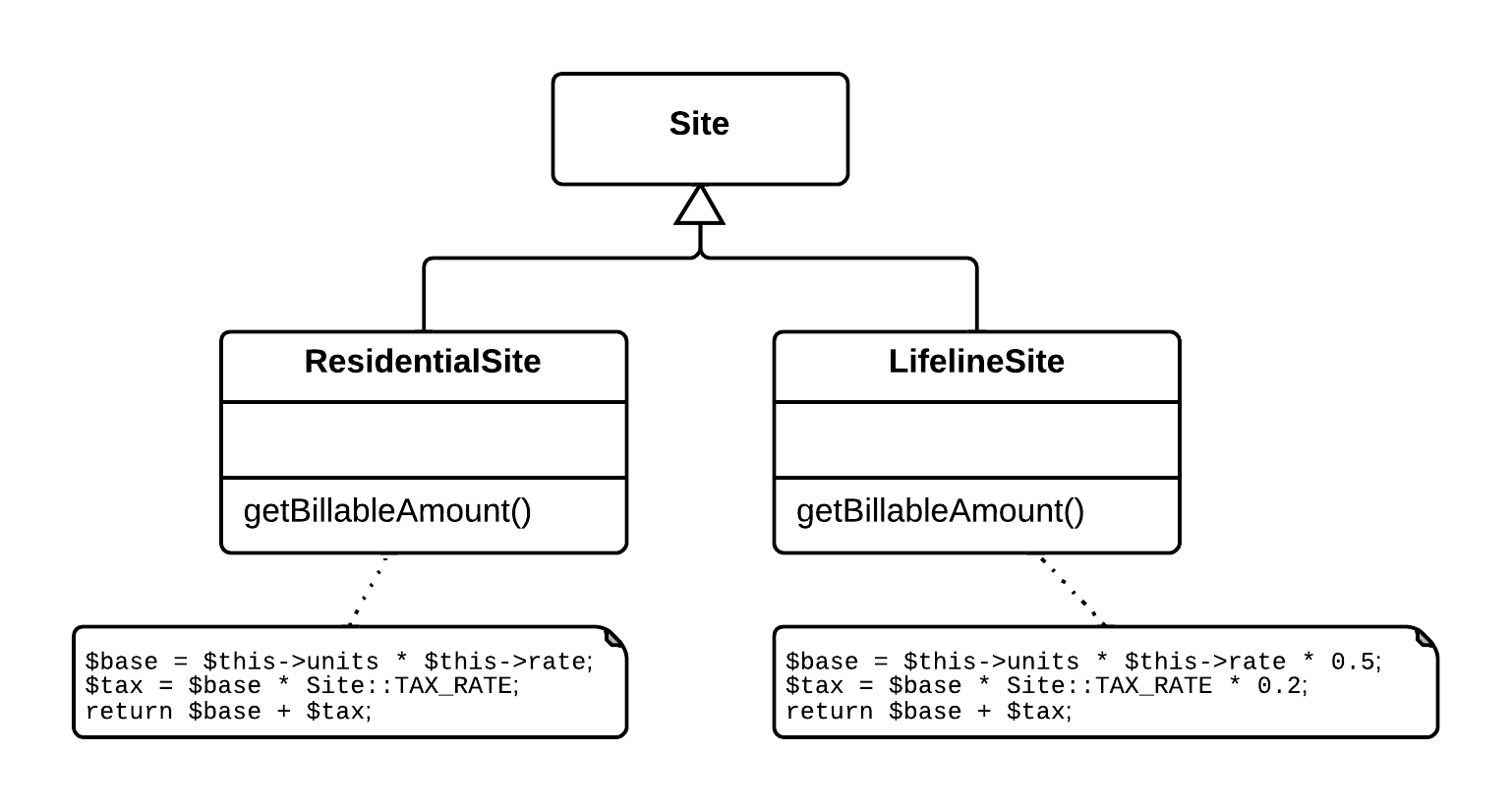

You have two methods in subclasses that perform similar steps in the same order, yet the steps are different.

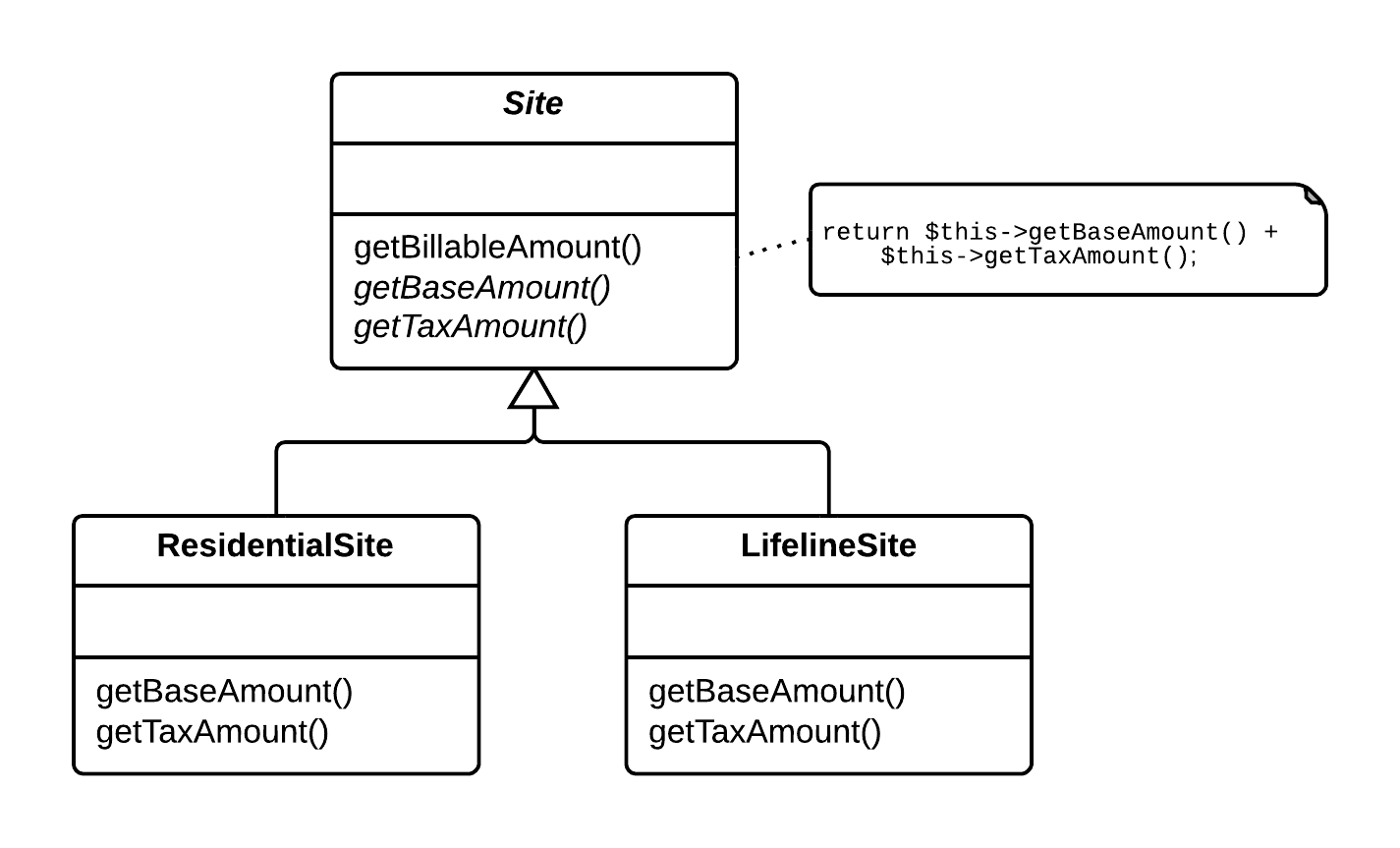

Get the steps into methods with the same signature, so that the original methods become the same. Then you can pull them up.

graphics/11fig11.gif

Motivation

Inheritance is a powerful tool for eliminating duplicate behavior. Whenever we see two similar methods in a subclass, we want to bring them together in a superclass. But what if they are not exactly the same? What do we do then? We still need to eliminate all the duplication we can but keep the essential differences.

A common case is two methods that seem to carry out broadly similar steps in the same sequence, but the steps are not the same. In this case we can move the sequence to the superclass and allow polymorphism to play its role in ensuring the different steps do their things differently. This kind of method is called a template method [Gang of Four].

Mechanics

  • Decompose the methods so that all the extracted methods are either identical or completely different.
  • Use Pull Up Method to pull the identical methods into the superclass.
  • For the different methods use Rename Method so the signatures for all the methods at each step are the same.
    This makes the original methods the same in that they all issue the same set of method calls, but the subclasses handle the calls differently.
  • Compile and test after each signature change.
  • Use Pull Up Method on one of the original methods. Define the signatures of the different methods as abstract methods on the superclass.
  • Compile and test.
  • Remove the other methods, compile, and test after each removal.

Example

I finish where I left off in first chapter I had a customer class with two methods for printing statements. The statement method prints statements in ASCII:

    public String statement() {
       Enumeration rentals = _rentals.elements();
        String result = "Rental Record for " + getName() + "\n";
        while (rentals.hasMoreElements()) {
            Rental each = (Rental) rentals.nextElement();
            //show figures for this rental
            result += "\t" + each.getMovie().getTitle()+ "\t" +
                String.valueOf(each.getCharge()) + "\n";
        }
        //add footer lines
        result +=  "Amount owed is " + String.valueOf(getTotalCharge()) + "\n";
        result += "You earned " + String.valueOf(getTotalFrequentRenterPoints()) +
             " frequent renter points";
        return result;
    }

while the htmlStatement does them in HTML:

    public String htmlStatement() {
        Enumeration rentals = _rentals.elements();
        String result = "<H1>Rentals for <EM>" + getName() + "</EM></H1><P>\n";
        while (rentals.hasMoreElements()) {
            Rental each = (Rental) rentals.nextElement();
            //show figures for each rental
            result += each.getMovie().getTitle()+ ": " +
                String.valueOf(each.getCharge()) + "<BR>\n";
        }
        //add footer lines
        result +=  "<P>You owe <EM>" + String.valueOf(getTotalCharge()) + "</EM><P>\n";
        result += "On this rental you earned <EM>" +
            String.valueOf(getTotalFrequentRenterPoints()) +
            "</EM> frequent renter points<P>";
        return result;
    }

Before I can use Form Template Method I need to arrange things so that the two methods are subclasses of some common superclass. I do this by using a method object [Beck] to create a separate strategy hierarchy for printing the statements (Figure 11.1).

Figure 11.1. Using a strategy for statements
graphics/11fig12.gif
  class Statement {}
  class TextStatement extends Statement {}
  class HtmlStatement extends Statement {}

Now I use Move Method to move the two statement methods over to the subclasses:

  class Customer...
public String statement() {
    return new TextStatement().value(this);
}
public String htmlStatement() {
    return new HtmlStatement().value(this);
}
 class TextStatement {
   public String value(Customer aCustomer) {
         Enumeration rentals = aCustomer.getRentals();
         String result = "Rental Record for " + aCustomer.getName() + "\n";
         while (rentals.hasMoreElements()) {
             Rental each = (Rental) rentals.nextElement();

             //show figures for this rental
             result += "\t" + each.getMovie().getTitle()+ "\t" +
                 String.valueOf(each.getCharge()) + "\n";
         }

         //add footer lines
         result +=  "Amount owed is " + String.valueOf(aCustomer.getTotalCharge()) + "\n";
         result += "You earned " + String.valueOf(aCustomer.getTotalFrequentRenterPoints()) +
           " frequent renter points";
         return result;
    }
 class HtmlStatement {
   public String value(Customer aCustomer) {
         Enumeration rentals = aCustomer.getRentals();
         String result = "<H1>Rentals for <EM>" + aCustomer.getName() + "</EM></H1><P>\n";
         while (rentals.hasMoreElements()) {
             Rental each = (Rental) rentals.nextElement();
             //show figures for each rental
             result += each.getMovie().getTitle()+ ": " +
                         String.valueOf(each.getCharge()) + "<BR>\n";
         }
         //add footer lines
         result +=  "<P>You owe <EM>" + String.valueOf(aCustomer.getTotalCharge()) +
              "</EM><P>\n";
         result += "On this rental you earned <EM>"
                 String.valueOf(aCustomer.getTotalFrequentRenterPoints()) +
                 "</EM> frequent renter points<P>";
         return result;
 }

As I moved them I renamed the statement methods to better fit the strategy. I gave them the same name because the difference between the two now lies in the class rather than the method. (For those trying this from the example, I also had to add a getRentals method to customer and relax the visibility of getTotalCharge and getTotalFrequentRenterPoints.

With two similar methods on subclasses, I can start to use Form Template Method. The key to this refactoring is to separate the varying code from the similar code by using Extract Method to extract the pieces that are different between the two methods. Each time I extract I create methods with different bodies but the same signature.

The first example is the printing of the header. Both methods use the customer to obtain information, but the resulting string is formatted differently. I can extract the formatting of this string into separate methods with the same signature:

 class TextStatement...
   String headerString(Customer aCustomer) {
     return "Rental Record for " + aCustomer.getName() + "\n";
   }
   public String value(Customer aCustomer) {
         Enumeration rentals = aCustomer.getRentals();
         String result =headerString(aCustomer);
         while (rentals.hasMoreElements()) {
             Rental each = (Rental) rentals.nextElement();

             //show figures for this rental
             result += "\t" + each.getMovie().getTitle()+ "\t" +
                 String.valueOf(each.getCharge()) + "\n";
         }

         //add footer lines
         result +=  "Amount owed is " + String.valueOf(aCustomer.getTotalCharge()) + "\n";
         result += "You earned " + String.valueOf(aCustomer.getTotalFrequentRenterPoints()) +
              " frequent renter points";
         return result;
    }

 class HtmlStatement...
   String headerString(Customer aCustomer) {
         return "<H1>Rentals for <EM>" + aCustomer.getName() + "</EM></H1><P>\n";
 }
 public String value(Customer aCustomer) {
       Enumeration rentals = aCustomer.getRentals();
       String result = headerString(aCustomer);
       while (rentals.hasMoreElements()) {
           Rental each = (Rental) rentals.nextElement();
           //show figures for each rental
           result += each.getMovie().getTitle()+ ": " +
                       String.valueOf(each.getCharge()) + "<BR>\n";
       }
       //add footer lines
     result +=  "<P>You owe <EM>" + String.valueOf(aCustomer.getTotalCharge()) + "</ EM><P>\n";
      result += "On this rental you earned <EM>" +
          String.valueOf(aCustomer.getTotalFrequentRenterPoints()) +
          "</EM> frequent renter points<P>";
      return result;
  }

I compile and test and then continue with the other elements. I did the steps one at a time. Here is the result:

 class TextStatement …
   public String value(Customer aCustomer) {
       Enumeration rentals = aCustomer.getRentals();
       String result = headerString(aCustomer);
       while (rentals.hasMoreElements()) {
           Rental each = (Rental) rentals.nextElement();
           result += eachRentalString(each);
       }
       result +=  footerString(aCustomer);
       return result;
    }
 String eachRentalString (Rental aRental) {
       return "\t" + aRental.getMovie().getTitle()+ "\t" +
           String.valueOf(aRental.getCharge()) + "\n";
     }
 String footerString (Customer aCustomer) {
         return "Amount owed is " + String.valueOf(aCustomer.getTotalCharge()) + "\n" +
            "You earned " + String.valueOf(aCustomer.getTotalFrequentRenterPoints()) +
            " frequent renter points";
     }
 class HtmlStatement…
   public String value(Customer aCustomer) {
         Enumeration rentals = aCustomer.getRentals();
         String result = headerString(aCustomer);
         while (rentals.hasMoreElements()) {
             Rental each = (Rental) rentals.nextElement();
             result += eachRentalString(each);
         }
         result +=  footerString(aCustomer);
         return result;
   }
   String eachRentalString (Rental aRental) {
       return aRental.getMovie().getTitle()+ ": " +
           String.valueOf(aRental.getCharge()) + "<BR>\n";
   }
   String footerString (Customer aCustomer) {
         return "<P>You owe <EM>" + String.valueOf(aCustomer.getTotalCharge()) +
         "</EM><P>
" + "On this rental you earned <EM>" +
         String.valueOf(aCustomer.getTotalFrequentRenterPoints()) +
           "</EM> frequent renter points<P>";
   }

Once these changes have been made, the two value methods look remarkably similar. So I use Pull Up Method on one of them, picking the text version at random. When I pull up, I need to declare the subclass methods as abstract:

 class Statement...
   public String value(Customer aCustomer) {
         Enumeration rentals = aCustomer.getRentals();
         String result = headerString(aCustomer);
         while (rentals.hasMoreElements()) {
             Rental each = (Rental) rentals.nextElement();
             result += eachRentalString(each);
         }
         result +=  footerString(aCustomer);
         return result;
     }
   abstract String headerString(Customer aCustomer);
   abstract String eachRentalString (Rental aRental);
   abstract String footerString (Customer aCustomer);

I remove the value method from text statement, compile, and test. When that works I remove the value method from the HTML statement, compile, and test again. The result is shown in Figure 11.2

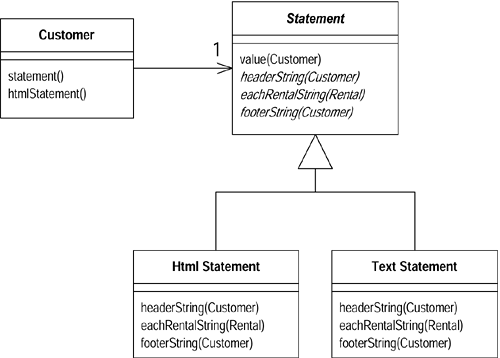

Figure 11.2. Classes after forming the template method
graphics/11fig13.gif

After this refactoring, it is easy to add new kinds of statements. All you have to do is create a subclass of statement that overrides the three abstract methods.
